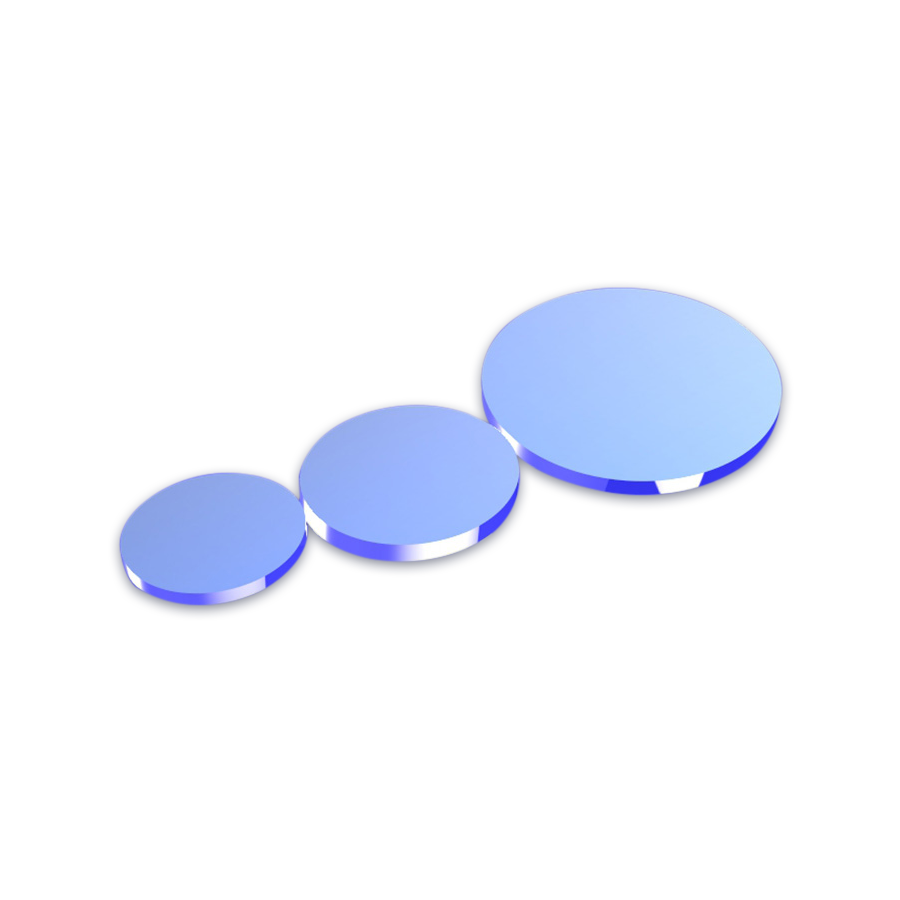

Polarization Beamsplitter Plate
偏振分光平片将入射光中的S偏振光和P偏振光分开。常用的设计角度45°和56°，有效实现偏振光的分离。第一面镀介质膜，第二面不镀膜的方式，优化了光的透射和反射效果，同时保持高损伤阈值，基底采用紫外熔石英适合高功率应用。
Universal parameter：
- 材料 JGS1
- 平行 <3分
- 尺寸公差 +0/-0.2mm
- 透过参数 Tp>95%，Ts<0.5%
- 厚度公差 ±0.2mm
- 反射参数 Rs>99.5%，Rp<5%
- 通光孔径 >90%
- 消光比 >1000:1
- 波前畸变 λ/4@633nm
- 镀膜 一面介质偏振分光膜
- 光洁度 60/40
- 损伤阈值 >5J/cm2，20ns，20Hz，@1064nm
