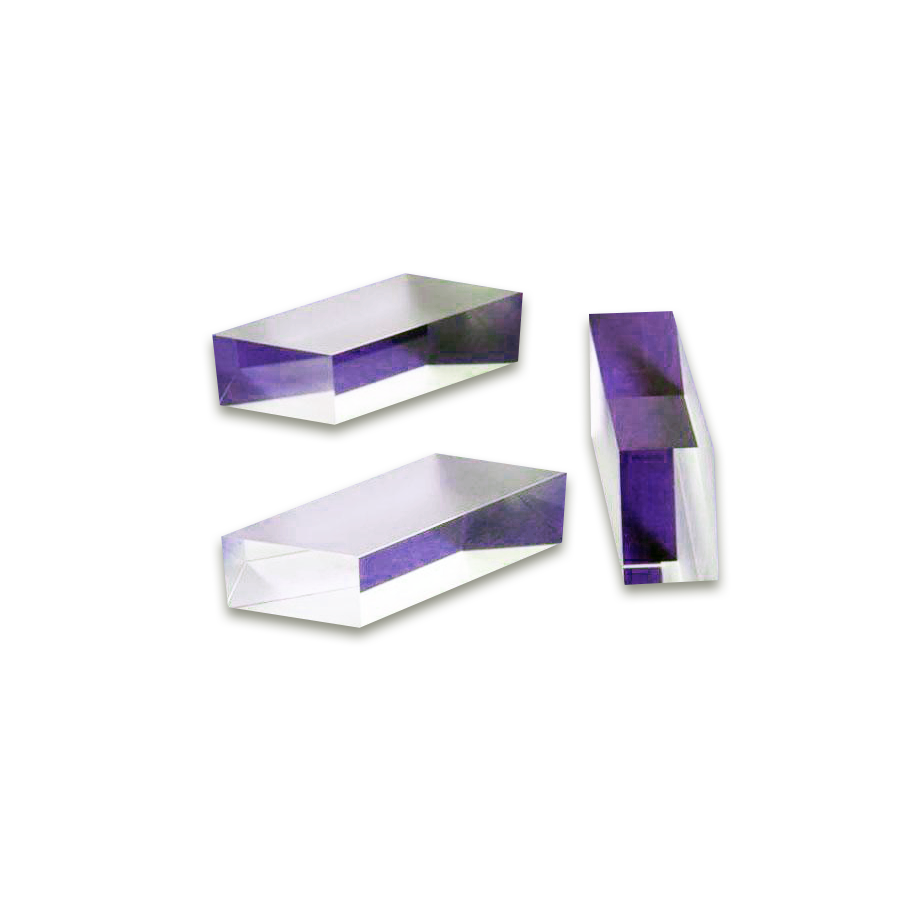

Rhomboid Prisms
Rhomboid prisms, also known as a oblique prism, is mainly used to laterally shift a laser beam without changing its direction. It can shift the optical axis without flipping the image, and the lateral displacement distance is equal to the length of the prism. These characteristics make rhomboid prisms an ideal choice for adjusting beam paths, especially useful in spatially constrained scenes.
Universal parameter：
- 材料 H-K9L/JGS1
- 光洁度 60/40
- 尺寸公差 +0/-0.2mm
- 角精度 <30秒
- 厚度公差 ±0.2mm
- 塔差 <5′
- 通光孔径 >90%
- 倒角 保护性<0.2-0.5mm*45°
- 面形 λ/4@633nm
- 镀膜 依据客户要求
Product number
Specification parameter
Material

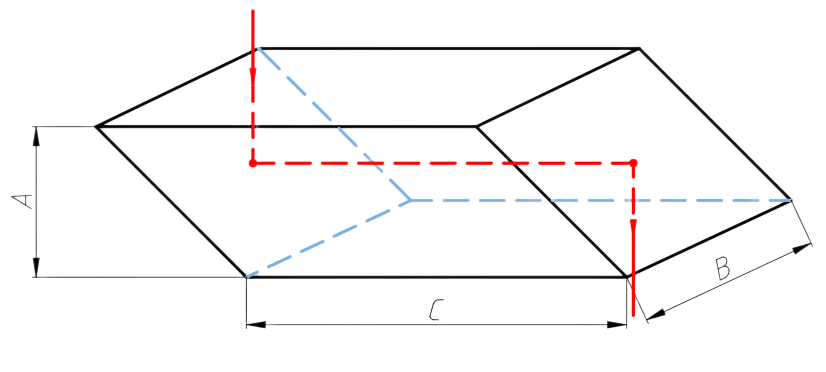

Diameter （A）（mm）
Thickness（B）（mm）
Displacement Distance(C)（mm）
Delivery time
